A component for matched refrigeration systems
Select the condensing unit against the refrigeration load and connected equipment. Verify compressor identity, wiring, connections and installation requirements before specifying the system.

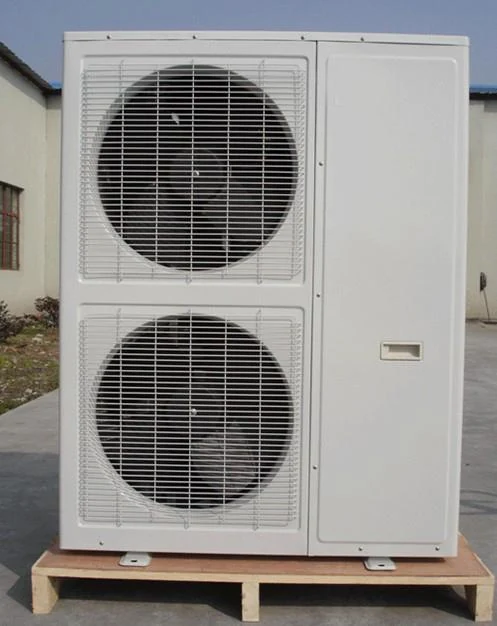

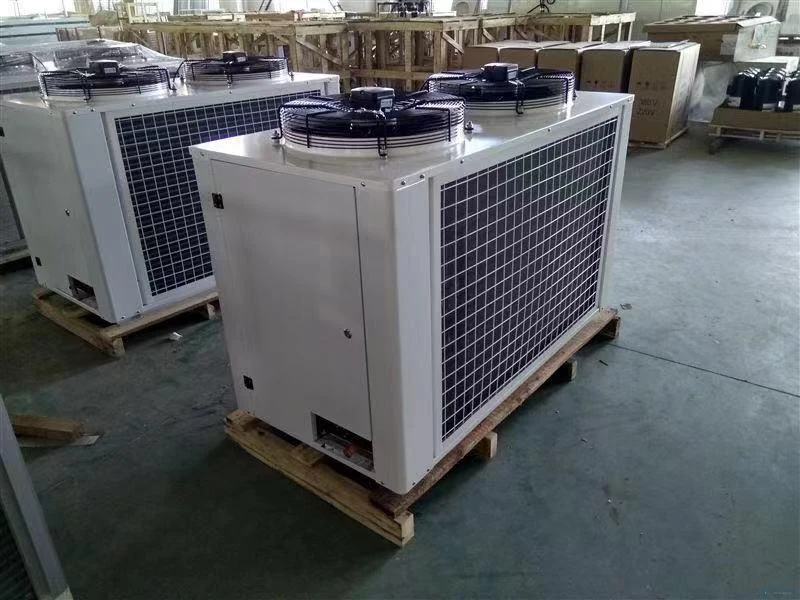

Family reference shown. Confirm the selected configuration before ordering.
Supplier family reference. Exact configuration may differ. Low-resolution original shown at native size.
Air-cooled configuration
Identified 3 HP condensing-unit configuration.
Nameplate cooling rating
7500 W rated cooling capacity; verify system selection.
Electrical specification
Nameplate supply: 220V / 1N / 60Hz.
Refrigerant identification
R404A is stated on the identified unit nameplate.
Equipment for
Your Operation
Plan your next equipment selection around your space, workflow and requirements.
SMART. COLD. POWERFUL.
Commercial Refrigeration
for Real Kitchens
3 HP Air-Cooled Condensing Unit
Model BCM-030BX3DG
The BCM-030BX3DG is an air-cooled component for a professionally designed remote refrigeration system. The identified 3 HP configuration carries a nameplate cooling-capacity rating of 7500 W.
COMMERCIAL
-30 to +15°C
CONFIRM WIDTH
REMOTE UNIT
COMMERCIAL USEGet current pricing, lead times and equipment recommendations
for your project.
Specifications
Model BCM-030BX3DG| Brand | CoolNox |
|---|---|
| Model | BCM-030BX3DG |
| Equipment Type | 3 HP Air-Cooled Condensing Unit |
| Overall Dimensions (W × D × H) | Confirm before ordering |
| Temperature Range | -30 to +15°C |
| Rated Cooling Capacity | 7500 W |
| Retail Price | Request pricing |
| Electrical | 220V / 1N / 60Hz |
| Weight | 67 kg |
| Shipping Dimensions | Confirm before ordering |
| Certifications | Confirm before ordering |
| Warranty | Confirm applicable warranty terms |
Additional verified specifications
| System | Remote refrigeration component |
|---|---|
| Identified configuration | 3 HP |
| Nameplate model | BCM-030BX3DG |
| Input power | 3061 W |
| Rated current | 21.9 A |
| Noise | 56 dB(A) |
| Refrigerant | R404A |
| Maximum pressure | 2.8 MPa |
| Refrigerant charge | 2.6 kg |
Ratings transcribed from the identified unit nameplate. Confirm compressor identity, wiring, connections, and installation requirements.
Equipment dimensions require confirmation.
Confirm specifications and availability when requesting a quote.
Air-cooled configuration
Identified 3 HP condensing-unit configuration.
Nameplate cooling rating
7500 W rated cooling capacity; verify system selection.
Electrical specification
Nameplate supply: 220V / 1N / 60Hz.
Ideal Applications
Engineered cold-room refrigeration, subject to system matchingChoose equipment around your workflow.
Commercial refrigeration replacement projects, subject to compatibilityChoose equipment around your workflow.
Remote refrigeration installations sized by a refrigeration professionalChoose equipment around your workflow.
What to Consider Before Ordering
Electrical RequirementsConfirm power requirements before ordering.
Ventilation & ClearanceAllow required operating clearances.
Equipment AccessVerify doorways and delivery path.
PlacementPlan a level installation location.
Frequently Asked Questions
What does the cooling-capacity rating mean?
The nameplate states 7500 W rated cooling capacity. A refrigeration professional must match it to the actual load and connected equipment.
What electrical supply is listed?
Nameplate supply: 220V / 1N / 60Hz; rated current 21.9 A. Confirm wiring and site requirements before installation.
What operating range and refrigerant are listed?
The nameplate lists -30 to +15°C and R404A. Confirm the rating conditions and suitability for the proposed system.
What must be checked before installation?
Dimensions, compressor identity, wiring and connections require confirmation. Ratings are transcribed from the identified unit nameplate.
Is warranty coverage confirmed?
Warranty coverage requires confirmation for the supplied unit.
